Transformer Winding Temperature Monitoring Solution
Measure transformer winding temperature with fiber optic probes, RTDs, indicators and project-configured monitoring instruments.
China manufacturer · Global project support
Transformer Monitoring Systems for Power Transformers
FUZHOUINNO supplies sensors and online monitoring systems for transformer condition, temperature, hot spots, partial discharge, dissolved gas and oil-system assessment.
6 verified product categories15 monitoring solutionsOEM and retrofit project review
Monitoring fundamentals
What Is Transformer Monitoring?
Transformer monitoring combines condition-specific sensors, time-stamped acquisition, alarms and engineering review to detect meaningful changes while the asset is operating.
It can cover thermal stress, insulation discharge, dissolved fault gases, oil-system condition, bushing behavior, tap changer operation and cooling performance. A useful system starts with the failure risk and response process—not the maximum possible channel count.
Use transformer condition monitoring to organize evidence by subsystem, or review online transformer monitoring for continuous sensor-to-SCADA architecture.
Condition-based engineering
Transformer Monitoring Solutions
Choose a monitoring method by transformer failure risk, measurable evidence and the action your maintenance team can take.
Transformer Hot Spot Monitoring Solutions
Measure selected transformer winding hot spots with direct probes, thermal context and multi-channel temperature acquisition.
Transformer Partial Discharge Monitoring Solution
Combine UHF, ultrasonic and HFCT sensing with synchronized acquisition, PRPD patterns and persistent transformer PD alarms.
Transformer DGA Monitoring Solution
Online transformer dissolved gas analysis for fault-gas trends, rate-of-change alarms and condition-based oil sampling.
Transformer Oil Condition Monitoring Solution
Coordinate transformer oil temperature, level, pressure and moisture-related measurements for early operating-condition awareness.
Transformer Bushing Condition Monitoring
Monitor transformer bushing insulation condition through capacitance, dielectric loss, leakage current, temperature and comparative trends.
Transformer OLTC and Tap Changer Monitoring
Monitor tap changer switching time, motor current, vibration, position and compartment temperature for early fault warning.
Integrated Transformer Monitoring System
Combine transformer temperature, DGA, partial discharge, oil, bushing, OLTC and cooling evidence in one coordinated monitoring architecture.
Product categories
Transformer Monitoring Products by System Type
Compare real sensors, monitoring instruments and integrated hardware for each measurement chain.
Transformer Fiber Optic Temperature Sensors
Fluorescent fiber optic probes for direct winding and hot spot temperature measurement in high-voltage transformer environments.
Transformer Temperature Monitoring Systems
Temperature monitors, indicators and controllers for winding, oil, core, ambient and cooling-system measurements.
Transformer Online Monitoring Systems
Configurable online systems that combine multiple transformer condition signals, alarms, communications and trend data.
Transformer Partial Discharge Monitoring Systems
UHF, ultrasonic and high-frequency current monitoring for online transformer partial discharge detection and trending.
Transformer DGA Monitoring Systems
Online dissolved gas analysis systems for trending selected fault gases in oil-filled power transformers.
Transformer Oil Condition Monitoring Systems
Transformer oil temperature, level, pressure and moisture-related monitoring for conservator and sealed-tank designs.
Featured hardware
Transformer Monitoring Systems and Sensors
Review available temperature sensors, field monitors and condition monitoring instruments for new transformers and retrofit projects.
transformer fiber optic temperature sensor
Armored Fiber Optic Temperature Sensor for Oil-Immersed Transformer Windings
Armored fluorescent fiber optic sensing for direct winding hot-spot temperature measurement in oil-immersed power transformers.
transformer temperature monitoring system
Oil-Immersed Transformer Temperature Monitoring System
Multi-point thermal monitoring for oil-filled transformer windings, oil and associated cooling equipment.
transformer temperature monitoring system
Dry-Type Transformer Temperature Monitoring System
Online winding temperature and alarm monitoring for cast-resin and air-cooled dry-type transformers.
transformer temperature monitoring system
Multi-Channel Fiber Optic Temperature Monitor
A configurable optical signal monitor for multiple transformer temperature probes.
transformer temperature monitoring system

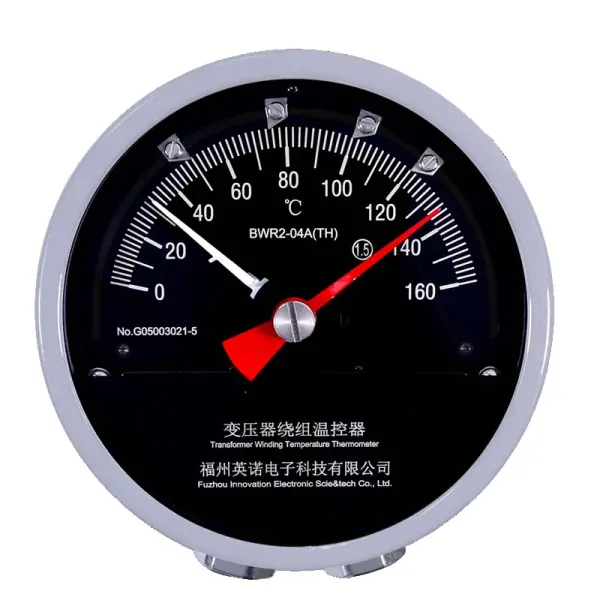

Transformer Winding Temperature Indicator
Local and remote winding temperature indication for oil-immersed transformer applications.
transformer temperature monitoring system

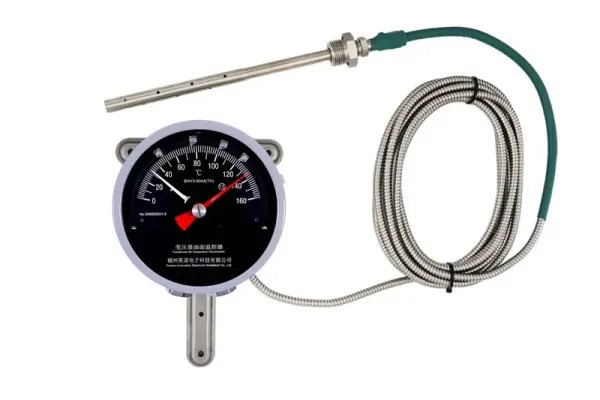

Transformer Oil Temperature Indicator
Transformer oil temperature indication with project-specific alarm and output options.
transformer temperature monitoring system

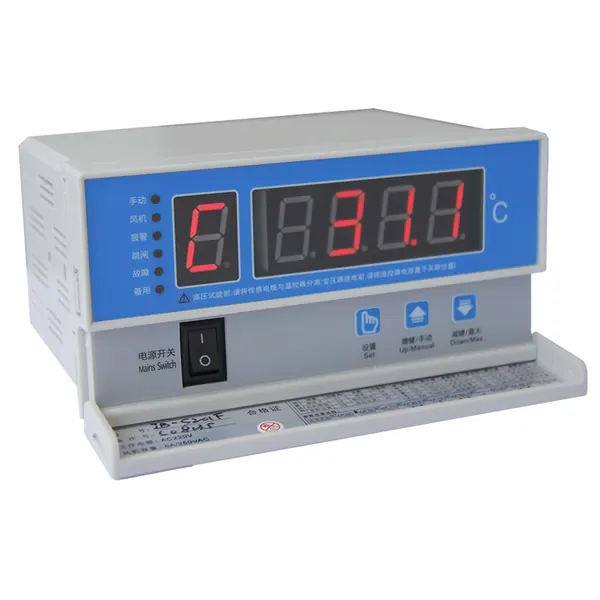

Dry-Type Transformer Temperature Controller
Temperature display, fan control and alarm functions for dry-type transformer installations.
transformer temperature monitoring system
Transformer Temperature Data Acquisition Unit
Compact acquisition hardware for integrating transformer temperature signals into monitoring systems.
Monitoring architecture
From Transformer Signals to Maintenance Evidence
Define the complete chain from sensor placement and field acquisition to alarms, communications and the owner’s confirmation workflow.
Sensors
Field Monitoring Unit
Communication Network
SCADA / Engineering Review
Industry applications
Transformer Monitoring by Operating Environment
Compare priorities for utilities, generation, renewables, BESS, data centers, industrial plants, mining, rail and transformer testing.

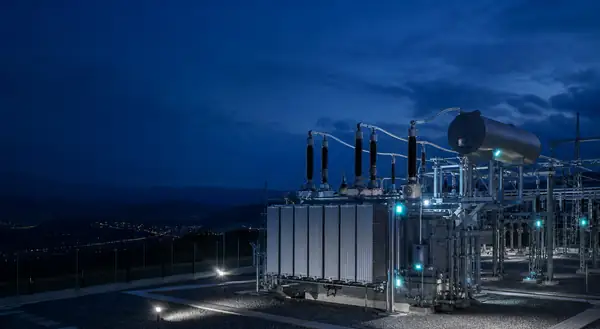

Power Utility Transformer Monitoring
Condition monitoring architecture for transmission substations, utility fleets and high-consequence oil-filled power transformers.
Power Generation Transformer Monitoring
Monitoring priorities for generator step-up, unit auxiliary and station transformers exposed to high loading and critical outage consequences.
Renewable Energy Transformer Monitoring
Remote transformer monitoring for wind, solar and renewable collection systems with variable loading and unattended sites.
BESS Transformer Monitoring
Monitoring design for battery energy storage system transformers subject to bidirectional power flow, rapid duty changes and remote operation.
Data Center Transformer Monitoring
Transformer temperature and condition monitoring for critical data center electrical infrastructure and high-availability power distribution.
Industrial Transformer Monitoring
Practical condition monitoring for plant substations, process facilities and transformers supporting production-critical loads.

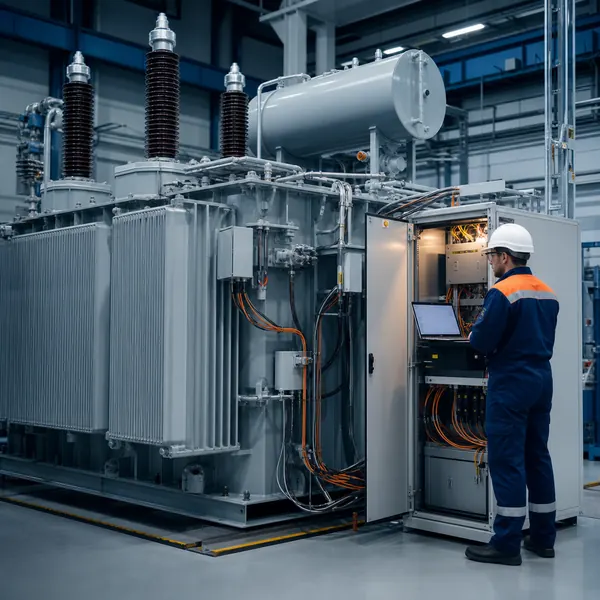

Transformer monitoring engineering

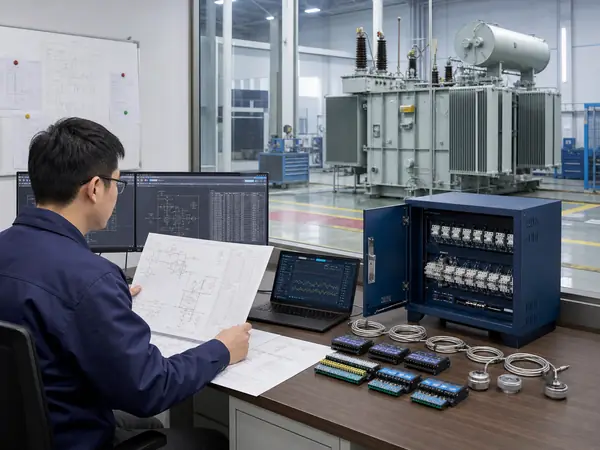

Transformer Monitoring System Engineering Before Configuration
FUZHOUINNO reviews the power transformer, target failure risks and required condition monitoring evidence before selecting sensors or monitoring hardware.
A project scope should define whether the system covers winding temperature, hot spots, partial discharge, DGA, oil condition, bushings, OLTC or an integrated online transformer monitoring architecture.
- New transformer and retrofit monitoring feasibility
- Sensor locations, measurement methods and channel schedule
- SCADA protocol, alarm ownership and data requirements
- Installation drawings, commissioning tests and document scope
Technical blog
Transformer Monitoring Guides, How-To Articles and Comparisons
Practical reading for system selection, installation, alarm planning, data interpretation and maintenance review.
guide
Transformer Monitoring System Guide: Architecture, Sensors and Decisions
A practical guide to transformer monitoring architecture, sensors, condition indicators, alarms, integration and maintenance decisions.
how to
How to Choose a Transformer Monitoring System: Buyer Checklist
Use a buyer-focused checklist to select transformer sensors, channels, protocols, alarms, installation scope and supplier deliverables.
top list
Top 10 Transformer Parameters to Monitor Online
Compare ten transformer parameters commonly monitored online and learn what each signal can and cannot reveal about asset condition.
top list
Top 10 Transformer Failure Modes and Monitoring Warning Signs
Review common transformer failure modes, their warning signs and the monitoring evidence used to plan inspection or diagnostic testing.
comparison
Online Transformer Monitoring vs Offline Testing: When to Use Each
Compare continuous transformer monitoring with offline diagnostic testing, including coverage, limitations, costs and maintenance decisions.
how to
How to Install a Transformer Monitoring System: Project Guide
Plan transformer monitoring installation from drawings and sensor placement through wiring, commissioning, baseline capture and handover.
FAQ
Transformer Monitoring System Questions
What is transformer monitoring?
Transformer monitoring is the coordinated measurement of thermal, electrical, chemical and mechanical condition so operators can identify changes, verify alarms and plan inspection or maintenance.
What is included in a transformer monitoring system?
A project may combine sensors, field acquisition, local diagnostics, storage, alarms and communication with SCADA or an asset system. The scope depends on transformer risk and the maintenance decision.
Which transformer parameters can FUZHOUINNO monitor?
Project options include winding and oil temperature, hot spots, dissolved gases, oil moisture and level, partial discharge, bushing indicators, OLTC signatures and cooling status.
Can transformer monitoring systems be customized?
Yes. Sensor type, measurement points, channels, enclosure, communication and installation details are reviewed against the transformer and required engineering decision.
Can monitoring data connect to SCADA?
Selected products support industrial communication interfaces. The project inquiry should state protocol, tag and system-integration requirements.
Project-ready supportProduct selectionSensors and instruments matched to the required measurement. System integrationChannels, alarms and communication interfaces defined for the project. Technical documentsSpecifications and available order documentation confirmed before supply.
Transformer monitoring built around your equipment
Share the transformer design, measurement points, installation stage and communication requirements. FUZHOUINNO will review a suitable product and monitoring configuration.
Start a technical discussion
